Ares

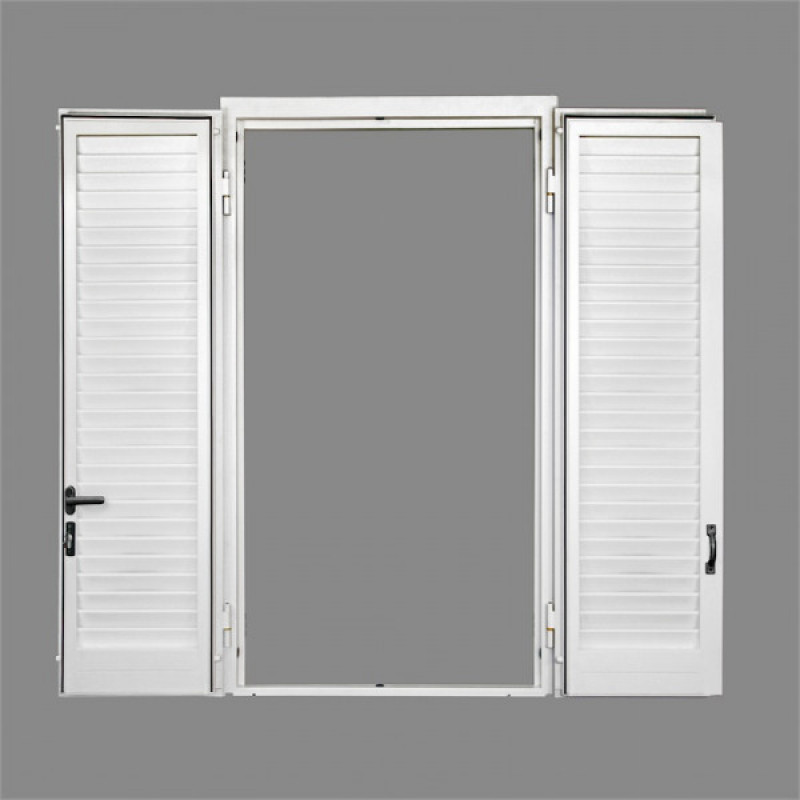

ARES is AEK’s line of ARMORED LOUVRES and SHUTTERS protecting any home with elegance. Thanks to its flexible production, its installation requires no masonry work.

ARES comes with :

• 4-sided FRAME made of 20/10-thick press-folded pre-zinced iron sheet with standard variable depth from 72 to 120 mm to ensure the very best fit, even in presence of insulation. It has a 20 mm sill and a front flap with variable depth from 50 to 75 mm. In the case of a renovation or of an especially bulky insulation, we can realize on request a frame with out of standard shape and sizes;

• SASHES made of 50 x 50 mm zinced steel tubular profiles with 20-mm flap;.

• L-shaped zinced steel COMPENSATION PROFILES painted the same colour as the product, to correct any out of square walls visible from inside the room;

• noise-reducing GASKETS inserted between the sash and the frame;

• anti-tear STUDS inserted between the sash and the frame as well as between the sashes;

• height-adjustable zinged steel HINGES;

• 2-point mortise LOCK.

ARES – certified burglar resistance class 3 according to UNI EN 1627/1628/1629/1630:2011

PRODUCT DETAILS:

Ares has a lowered handle and a high-security defender to protect the cylinder.

ARES: practical and functional 100% Italian design

2-deadbolt lock: the 18-mm deadbolts engage in the frame to lock the sash, one in the head and one in the sill.

Studs are inserted between the sash and the frame, and there are two fixing points by each hinge, to further increase burglar resistance

Studs are inserted between the sashes too to ensure further protection.

The height-adjustable hinge enables the vertical adjustment of the sash.

The gasket between the sashes enables a quieter close.

ARES: Burglar RC 3 for the protection of your home

or further burglar resistance, the 50 x 10 x 1.5 mm oval-section slats are welded to the frame jambs, and a steel reinforcement is inserted inside each slat.
